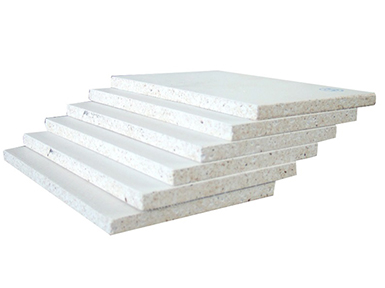

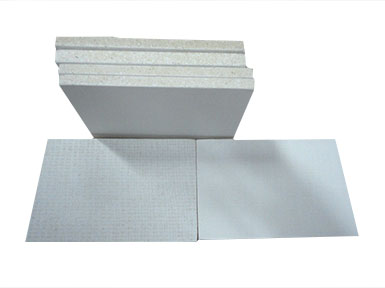

Magnesium Oxide Board ( MgO board )

产品详情_03.jpg Usage:

A: Interior and Exterior siding of building

B: Suspended ceiling and elevated floor

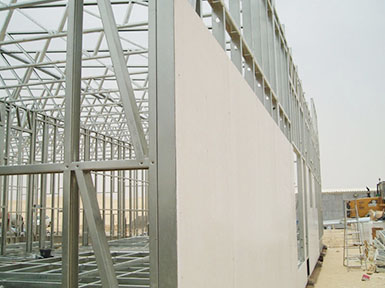

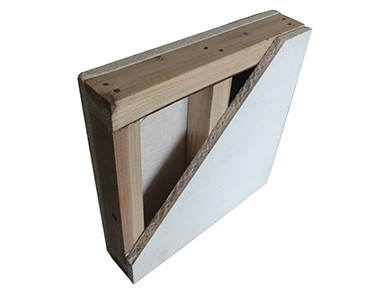

C: Interior partition wall systems

D: Providing fire insulation/Sound insulation/Insulation of cold storages

E: Floor concrete as sub floor support material



产品详情_03.jpg Specification and Technical Data

Raw Materials

Magnesium Oxide,Magnesium Chloride, Perlite, Fiberglass mesh,Wood fibers

Standard Size

2400x1200mm,2440x1220mm,3000x1200mm,3000x1220mm

According to the requirement

Thickness

3.0-20mm

Density

0.85-1.00g/cm³

Color

White

Water content

≤20%

Water Absorption

≤40

Thermal Resistance

1.14㎡k/w(GB/T13475-92)

Shrinking rate

when heated:

1.0%

Bending Strength

18Mpa when dry,22Mpa when moisture-saturated condition

Breaking load:

113-498

Fire Resistance

Incombustibility A1 Class(GB8624-1997)

Sound Insulation

≥44dB(gbj121-88)

Security

100% Does not include asbestos,formaldehyde and benzene

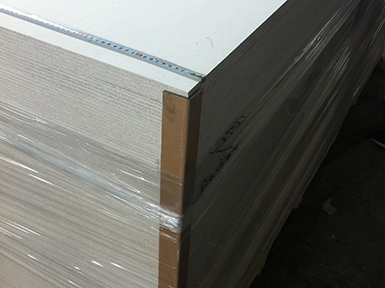

Packing

Bulk/Wooden pallet




<
