SHANDONG LEGEND BUILDING MATERIALS CO.,LTD
——Your Ceiling & Drywall System Specialist

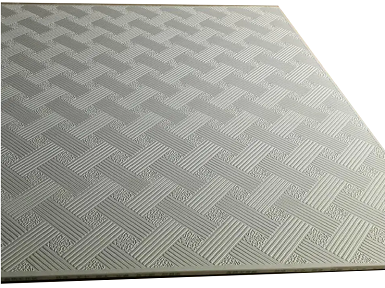

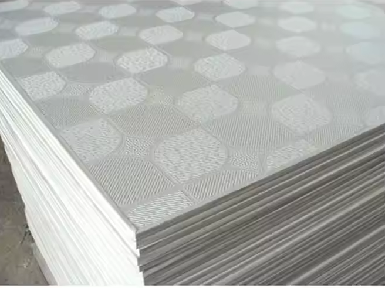

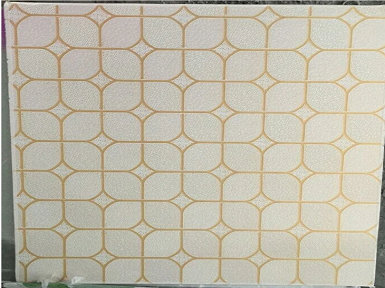

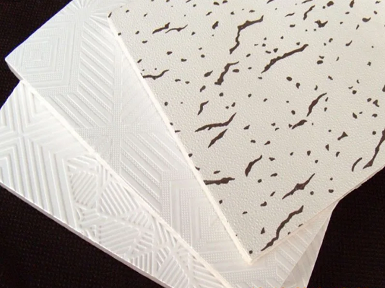

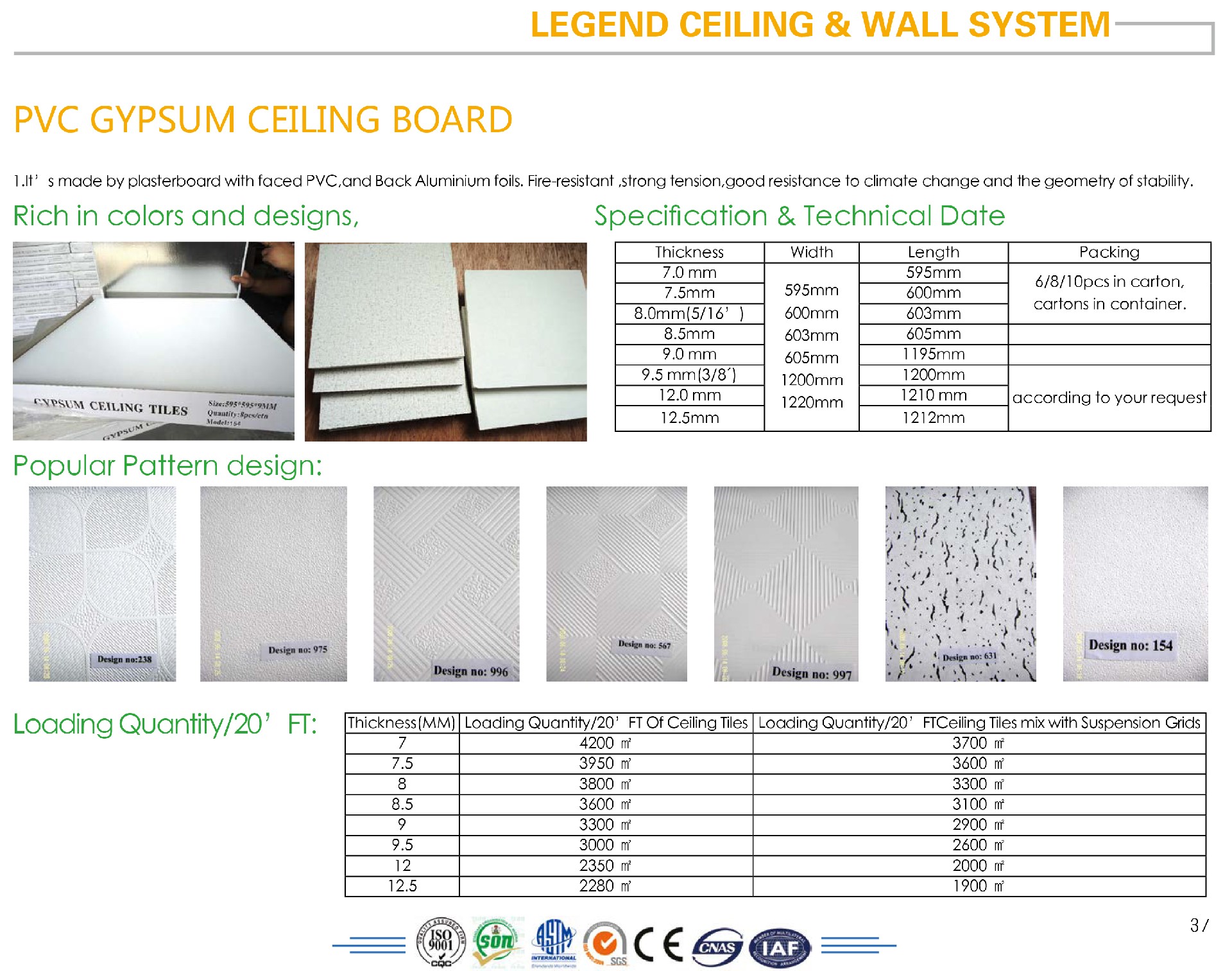

It’s made by Gypsum board with faced PVC, and Back Aluminium foils.

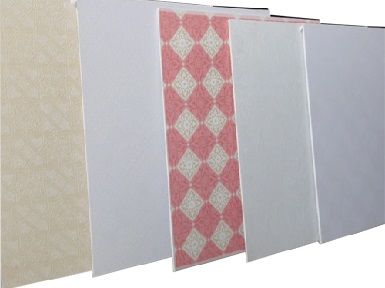

Rich in colors and designs,

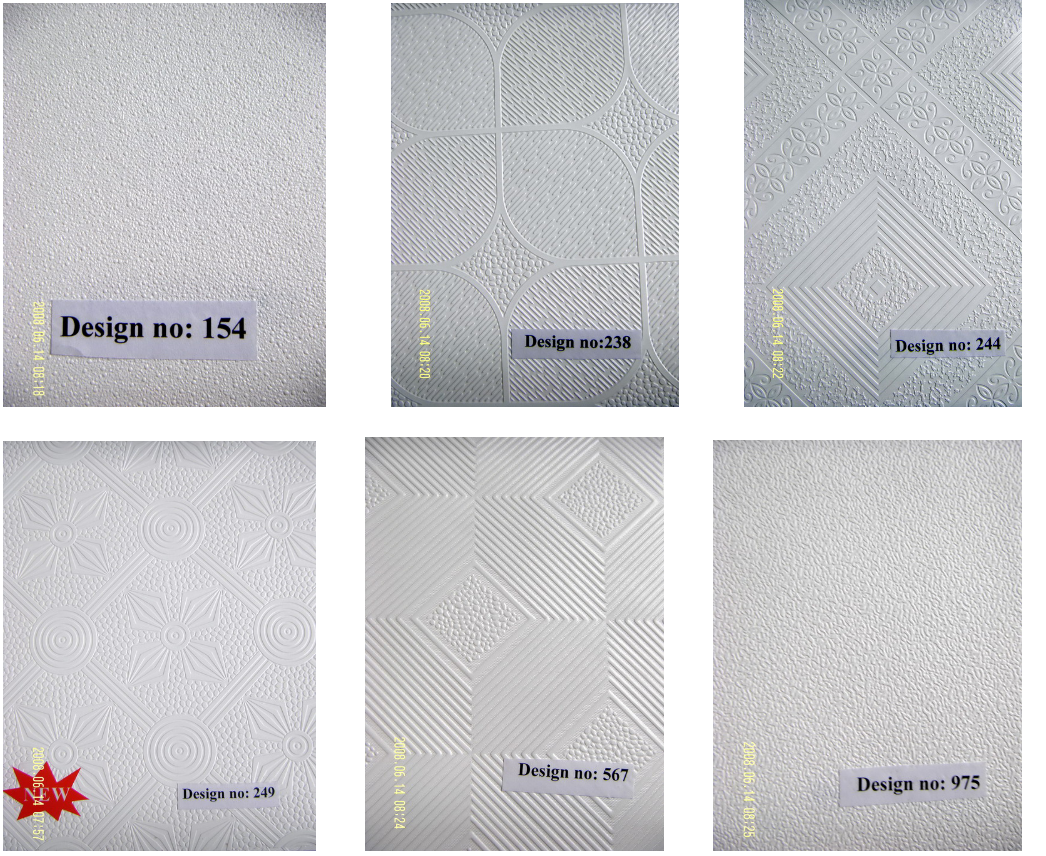

Popular Pattern design:
Specification & Technical Date
Thickness | Width | Length | Packing |
7.0 mm |
595mm 600mm 603mm 605mm 1200mm 1220mm | 595mm | 6/8/10pcs in carton, cartons in container . |
7.5mm | 600mm | ||
8.0mm(5/16’) | 603mm | ||
8.5mm | 605mm | ||
9.0 mm | 1195mm | Mark : | |
9.5 mm(3/8´) | 1200mm | according to your request | |
12.0 mm | 1210 mm | ||
12.5mm | 1212mm |
Material | Top quality Gypsum board, PVC |
Surface Coating | Embossed Vinyl facing for front side and aluminium foil for back side |
Thickness | 7mm,7.5mm,8.0mm,8.5mm,9.0mm,9.5mm,12mm,12.5mm |
Usually Size | 595*595mm,600*600mm,603*603mm,595*1195mm,603*1212mm |
Moisture Rate | ≤1% |
Flexural Strength | ≥150N |
Unit Weight | ≤7kg/㎡ |

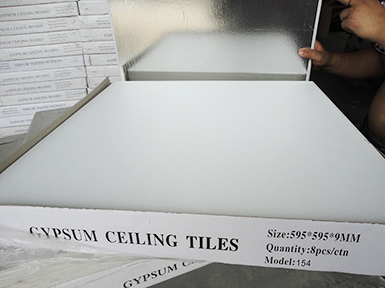

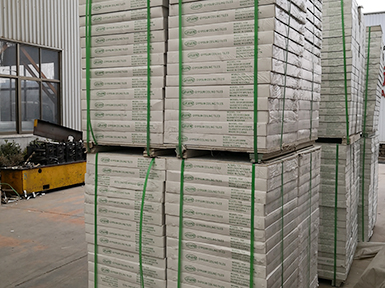

Packing | Export carton(6/8/10pcs per carton with film) |
Sagging resistant properties | Warranty against visible sag |
Noise reduction coefficient | 0.1-0.3 |
Thermal conductivity | Resistant to 95% humidity and standing water |
Light reflectance | 0.75 |

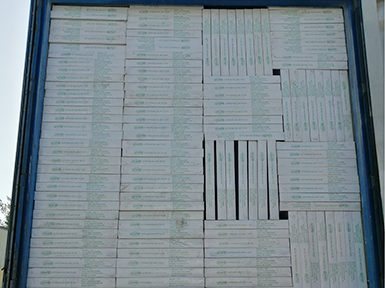

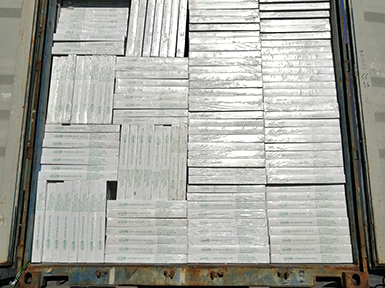

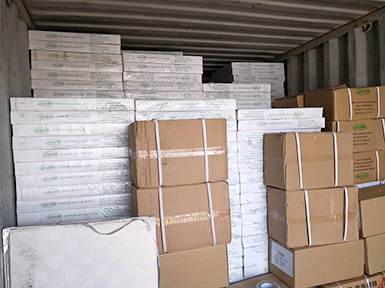

Loading Quantity/20’FT
Thickness(MM) | Loading Quantity/20’FT Of Ceiling Tiles | Loading Quantity/20’FT Of Ceiling Tiles mix with Suspension Grids |
7 | 4200㎡ | 3700㎡ |
7.5 | 3950㎡ | 3600㎡ |
8 | 3800㎡ | 3300㎡ |
8.5 | 3600㎡ | 3100㎡ |
9 | 3300㎡ | 2900㎡ |
9.5 | 3000㎡ | 2600㎡ |
12 | 2350㎡ | 2000㎡ |
12.5 | 2280㎡ | 1900㎡ |
Product Physical Characteristics
1.No harm to human body,have an outstanding effect of resisting falling dust.A grade building materials,conform to the standard of GB6566-2001《Building Material Radiactive Nuclide Ration》
2.Moistureproof and resist to sag, easy to clean,conform to the nationa standard JC/T997-2006《Decorative Gypsum Board With Paper Facing》
3.High standard of A Grade Fire Resistant,Good insulation effect.Conform to the item204 of GB50222-95 of《Building Material Inner Decoration&Design Fireproof Criterions》
Advantages
1.Fire-resistant ,strong tension ,good resistance to climate change and the geometry of stability
2.Light weight, strong tension,fire resistant,sound insolution ,undeformation
3.Fire-proof,moisture-proof,Heat-resistant and cold-preventing
